Kawasaki Heavy Industries, Ltd.

Aeration Blower
for Wastewater-Treatment Plant

High Efficiency
at Any Operating Point

Kawasaki MAG Turbo enables stable and efficient air supply to follow up variable water inflow load such as flow capacity, air pressure and water quality, by Dual Flow Control:
Inlet Guide Vane Control and Variable Rotational Speed Control.

Dual Flow Control attains high partial load efficiency and wide range of flow capacity by shifting performance curve at the most efficient point in response to variable water inflow load. Furthermore, custom designed state-of-the-art impeller attached to the end of the shaft levitated by active magnetic bearing reduces power consumption.

Typical Configuration

The layout and supply scope can be flexible to meet customer’s needs and wants.

  • Flow Capacity Range:11,510 to 33,600 SCFM 68 °F ,14.7 psia, 36 %RH (330 to 950 m3/min 20℃ 101.3kPa 36%RH)
  • Main Power Supply 4,160V (60 Hz)

More Detail

Key Strengths for High Efficiency

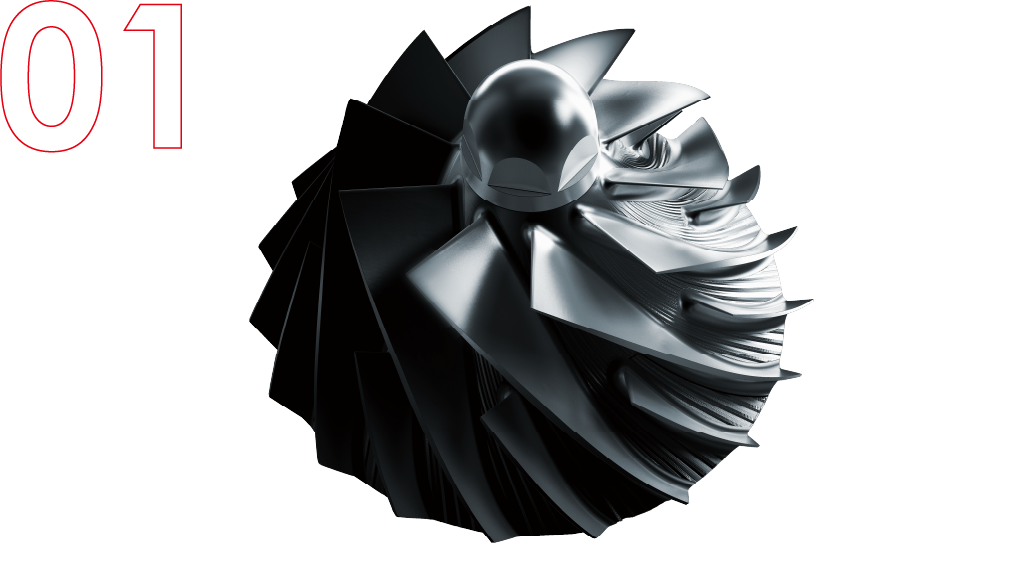

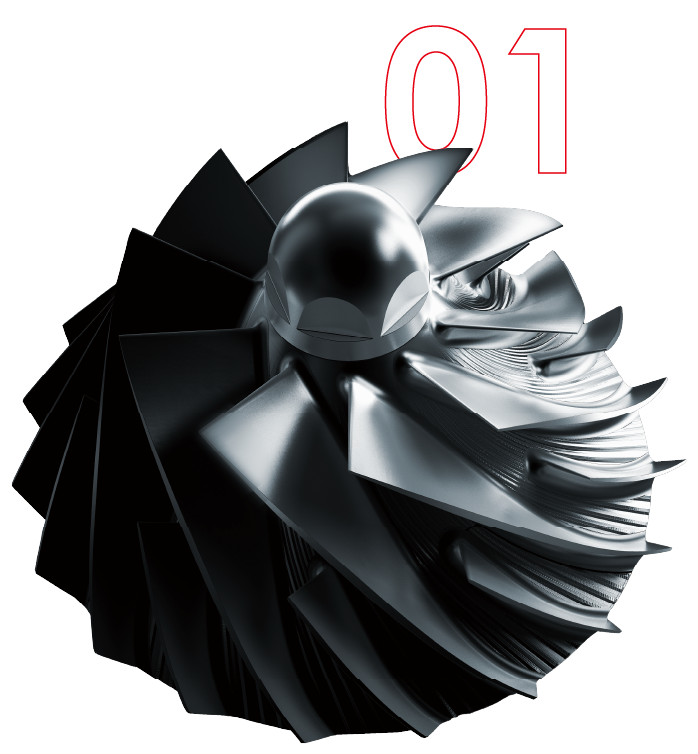

Custom-Designed Impeller

Optimally designed for each project’s
specific operating conditions

The impeller is designed specifically for each project to ensure that the incidence angle at the inlet and the discharge angle are as intended. Additionally, we verify that the stress remains within allowable limits and that resonance with the natural frequency is avoided within the expected operating range.

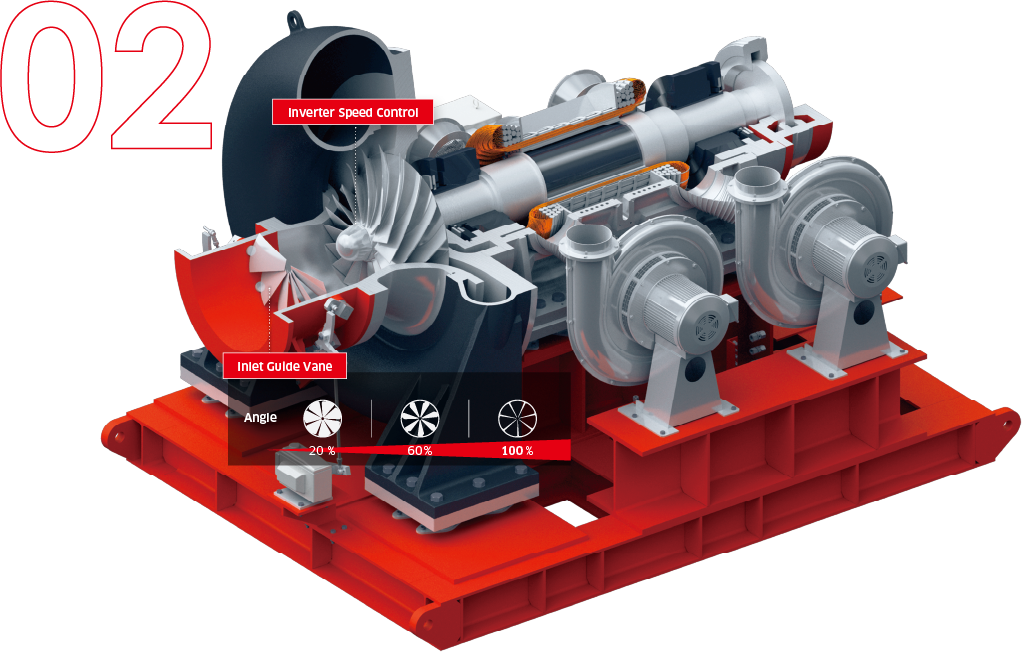

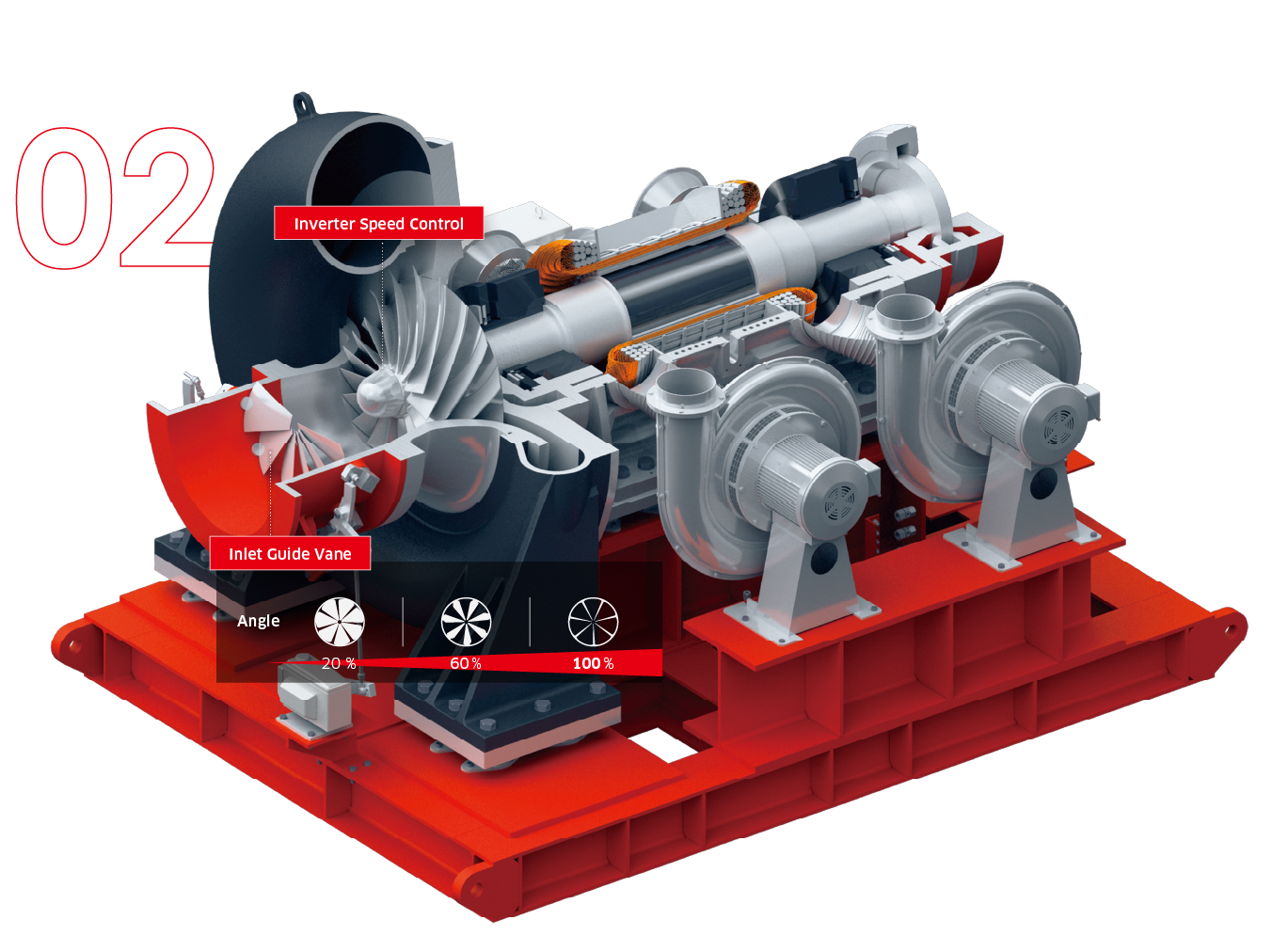

Dual Flow Control

High efficiency at partial load
and wide range of operation

Dual flow control with variable inlet guide vanes and variable rotational speed ensures highly efficient operation at any point by adjusting the performance curve to the most efficient point in response to the required airflow and discharge pressure.

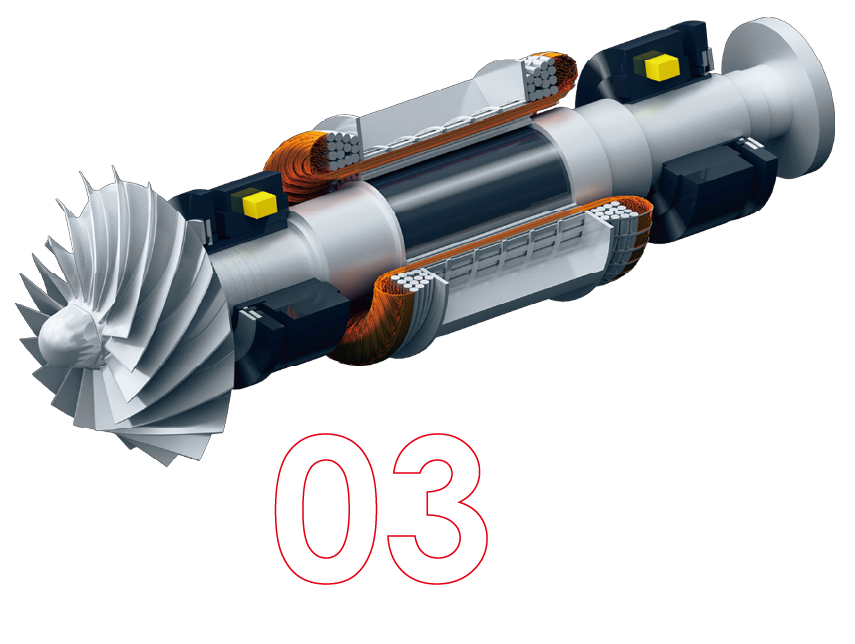

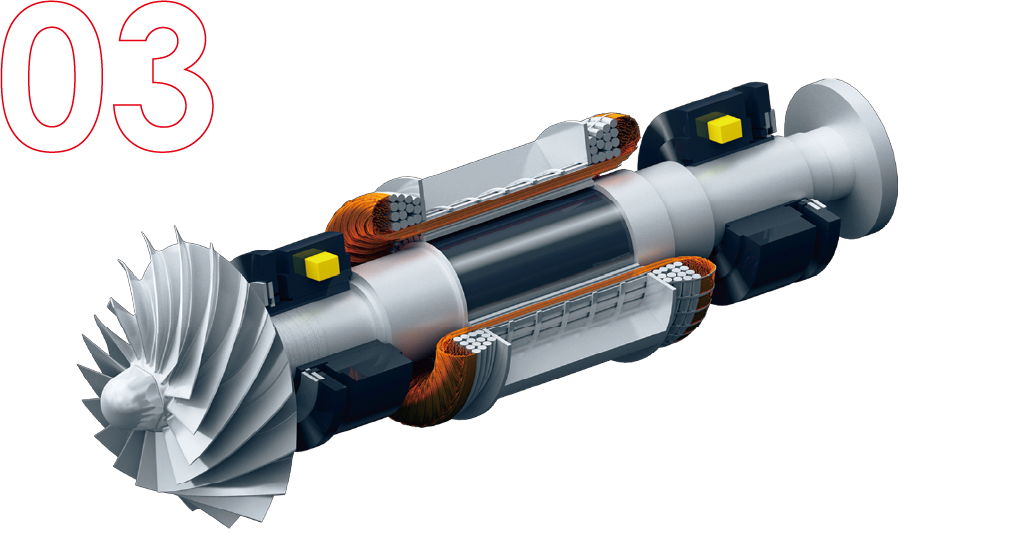

Active Magnetic Bearings

No friction loss thanks to levitation
by Active Magnetic Bearings

The rotor of the high-speed motor is levitated by active magnetic bearings with an impeller attached to the end of the shaft. Active magnetic bearings achieve no mechanical loss, quiet operation, and reduced vibration because they allow the rotor to rotate without mechanical contact.

Key Strengths
for High Efficiency

Custom-Designed Impeller

Optimally designed for each project’s
specific operating conditions

The impeller is designed specifically for each project to ensure that the incidence angle at the inlet and the discharge angle are as intended. Additionally, we verify that the stress remains within allowable limits and that resonance with the natural frequency is avoided within the expected operating range.

Dual Flow Control

High efficiency at partial load
and wide range of operation

Dual flow control with variable inlet guide vanes and variable rotational speed ensures highly efficient operation at any point by adjusting the performance curve to the most efficient point in response to the required airflow and discharge pressure.

Active Magnetic Bearings

No friction loss thanks to levitation
by Active Magnetic Bearings

The rotor of the high-speed motor is levitated by active magnetic bearings with an impeller attached to the end of the shaft. Active magnetic bearings achieve no mechanical loss, quiet operation, and reduced vibration because they allow the rotor to rotate without mechanical contact.

We offer design support during the basic or detailed design stage at the customer’s site,
and we support stable operation through periodic visit and preventive maintenance from our local facilities.

After Installation

Engineering Service

Innovating with Technology Since 1878

Founded in 1878, Kawasaki Heavy Industries, Ltd. has a rich history in manufacturing high-speed rotating machinery, including industrial blowers and gas turbines for power generation. For a detailed overview, please visit our company profile. (Corporate Profile | Kawasaki Heavy Industries, Ltd.)

Since 1965, as highlighted in our timeline, KHI has been producing and marketing aeration blowers for wastewater treatment facilities. Supported by our extensive experience, our expertise ensures high efficiency, stable performance, and easy maintenance. The MAG Turbo, our flagship product, epitomizes these technological advancements.

History
of the Blower Business

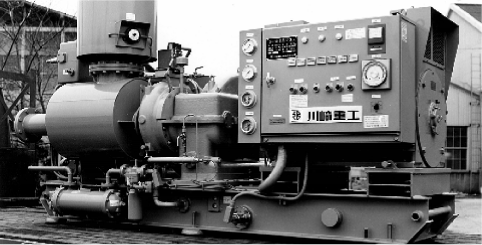

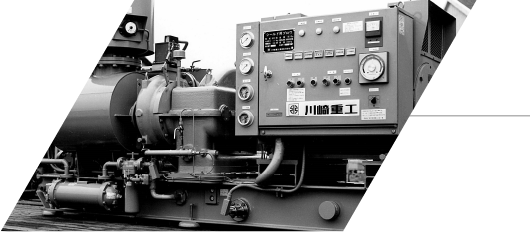

  • 1959

    Began development Kawasaki GM Blower
    *Gear-Increased Single-Stage Mixed Flow Blower

  • 1965

    Received the first order for the Kawasaki GM Blower

  • 2004

    Started development of the MAG Turbo (Japanese model) for the Japanese market

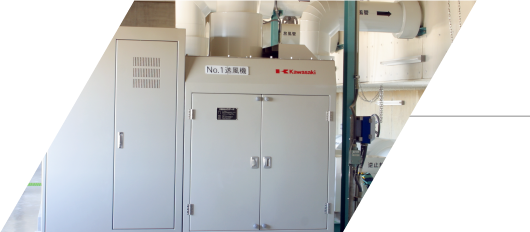

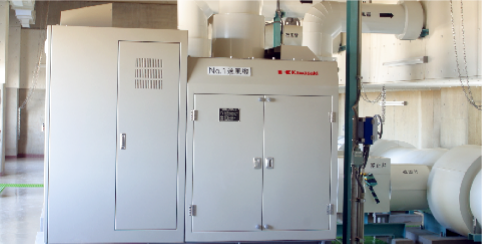

  • 2007

    Received the first order for the Kawasaki MAG Turbo

  • 2017

    Initiated development to expand MAG Turbo capacity for the global market

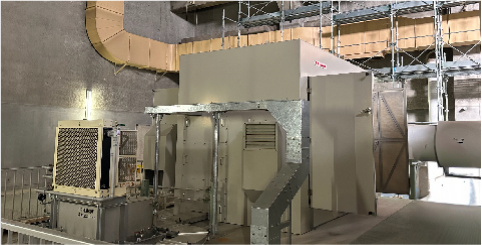

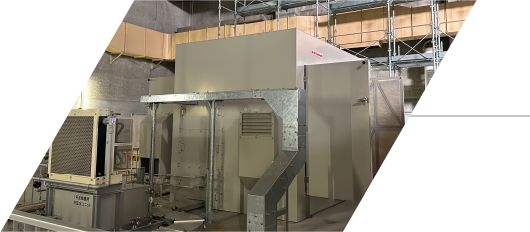

  • 2020

    Received the first order for the MAG Turbo (Global model)

Materials Download
Contact Form

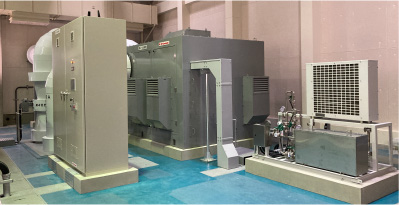

  • Kobe, Japan

    Capacity

    14,830scfm per unit

    Operation starts

    March 2024

  • Saitama, Japan

    Capacity

    28,248scfm per unit

    Operation starts

    From October 2021

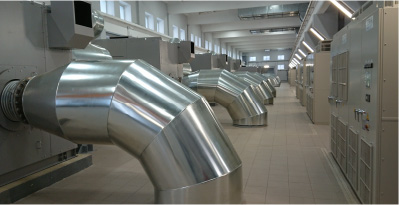

  • Moscow, Russia

    Capacity

    27,083scfm per unit

    Operation starts

    from May 2021
